Automatic GMP Certified Ampoule Filling and Sealing Machine with Ultrasonic Washing, Sterilizing, Cooling and Nitrogen Flushing

Name: Automatic GMP Certified Ampoule Filling and Sealing Machine with Ultrasonic Washing Sterilizing Cooling and Nitrogen Flushing
Brand: Lingyao
Price: 50 USD

China Automatic GMP Certified Ampoule Filling and Sealing Machine with Ultrasonic Washing, Sterilizing, Cooling and Nitrogen Flushing wholesale

Brand Name : Lingyao

Certification : CE,GMP

Place of Origin : China(Thailand available soon)

MOQ : 1 pc

Price : 50,000-200,000 USD per line

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1-2 lines per month

Delivery Time : 120 work days normally

Packaging Details : carton, wood carton, pallets

Application : Ampoules (1–20ml)

Capacity : 5000–40,000 pcs/hour

Filling Accuracy : ±1%

Speed Range : Adjustable

Compliance : GMP, CE

Material : 316L Stainless Steel, sanitary-grade components

Control System : PLC + HMI touchscreen

Sterilization : Hot-air circulation + ultrasonic washing

Automation : Integrated cooling, nitrogen flushing, sealing

Dimensions : 12,600 × 2,260 × 2,445 mm

Contact Now

LYAPL1-20 Automatic GMP Certified Ampoule Filling and Sealing Machine with Ultrasonic Washing, Sterilizing, Cooling and Nitrogen Flushing

The LYAPL1-20 Automatic Ampoule Filling and Sealing Machine is a cutting-edge pharmaceutical production line designed for precision vial processing.

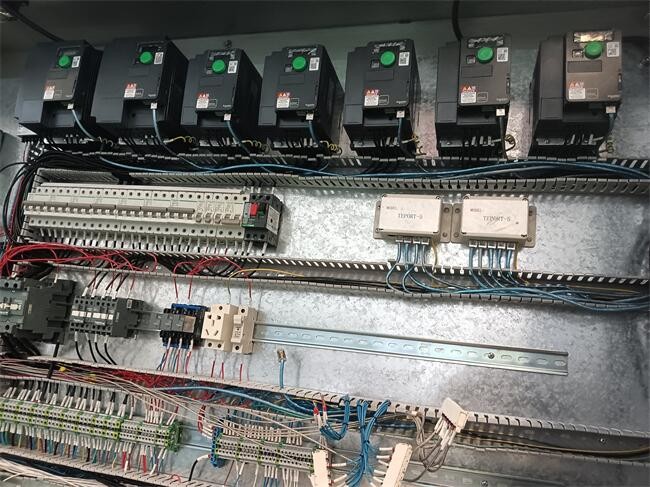

No.	Component	Model/Spec.	Brand	Notes
1	Controller(PLC)	SIMATIC S7-200/S7-200 SMART ST40	Siemens AG
2	Touch Screen HMI	SMART 700 IE V3/V4/TP177-1.0"	Siemens AG
3	Frequency Converter	SINAMICS V20/ATV-312H037N4	Siemens/Schneider
4	Sensor	GTB6N1211/LJC18A3-B-Z/BX/GL6	SICK-Germany
5	Motor	YE2-80U2-4/90YR90-D-Y38/CV100-30-S-G1	Delixi/Jingyan/Taiwan
6	Linear Bearings	LM10UU/LM20UU	SAMICK Korea
7	Vacuum Generator	SK-0.3A/SK-0.5A	Guangde Yulong/SMC-Japan
8	Servo Drive	ST860H	Shuming/China
9	Thermal Relay	3US5040-1G	Siemens AG	Overload protection
10	Power Supply	S-35-24(MW)/LRS-100-24	MEAN WELL Taiwan

Combining ultrasonic washing, hot-air sterilization, filling, and hermetic sealing, it ensures aseptic 1–20ml ampoule production under GMP standards. This high-speed system includes a vertical ultrasonic cleaning module, tunnel sterilization oven, and servo-driven filling-sealing unit. Key features include ±1% filling accuracy , modular 316L stainless steel construction, and PLC-controlled automation for seamless processes like water rinsing, nitrogen jetting, and cooling. Ideal for small-volume injectables , the machine supports 5,000–40,000 ampoules/hour with adjustable speed settings.
Its hygienic design minimizes contamination risks while optimizing workflow efficiency.
The integrated HMI touchscreen allows real-time monitoring, fault diagnostics, and parameter adjustments, ensuring compliance with global pharmaceutical regulations.
Perfect for sterile drug manufacturing , the LYAPL1-20 reduces labor intensity, enhances product qualification rates, and delivers reliable performance for vaccines, biologics, and critical care medicines.

Automatic GMP Certified Ampoule Filling and Sealing Machine with Ultrasonic Washing, Sterilizing, Cooling and Nitrogen Flushing

Keywords : Ampoule filling machine, ampoule sealing machine, GMP pharmaceutical equipment, ultrasonic ampoule washer, sterile vial production, 1-20ml injectables
